PROJECT CASE STUDY
External Wall Insulation and Silicone Render in Oadby, Leicester
Oadby, Leicester (LE2) · 50mm EWI System · Silicone Render Finish
145m² Total Wall Area · 10-Year Workmanship Warranty · Free Site Survey
PROJECT DETAIL / SPECIFICATION
Project at a Glance
LOCATION
Oadby, Leicester (LE2)
PROPERTY TYPE
Semi-detached home with its original facing brickwork
TOTAL WALL AREA
145m²
EXTERNAL WALLS INSULATED
120m²
SYSTEM INSTALLED
50mm EPS external wall insulation finished in premium silicone render
FIXINGS
200+ mechanical fixings installed throughout the system
ACCESS
Safe access scaffolding erected around the property
WARRANTY
10-Year Workmanship Warranty
The Brief
Original facing brickwork with poor thermal performance and a dated appearance, transformed with a 50mm external wall insulation system and a crisp silicone render finish — backed by our 10-year workmanship warranty and the manufacturer’s product warranty.
This semi-detached property in Oadby, Leicester still featured its original facing brickwork, which provided little thermal insulation and left the home looking dated compared to neighbouring properties. The homeowners wanted to improve both the appearance and energy efficiency of the property while creating a modern, maintenance-free finish that would remain looking clean for years to come.
As with all of our projects, we carried out a detailed site survey before recommending the most suitable insulation thickness and rendering system. Our team completed a full measured survey of the property to accurately scope the external wall insulation installation.
The Problem
The survey confirmed what the new system needed to deliver for this home:
ISSUE 01
1
Little thermal insulation.
The original facing brickwork provided little thermal insulation for the home.
ISSUE 02
2
A dated appearance.
The exterior looked dated compared to neighbouring properties.
ISSUE 03
3
A finish that stays clean.
The homeowners wanted a modern, maintenance-free finish that would remain looking clean for years to come.
ISSUE 04
4
The right specification.
Insulation thickness and rendering system had to be matched to the property, so both were specified only after a detailed site survey.
Following the survey, we produced a detailed quotation covering all materials, labour, trims, reinforcement mesh, scaffolding and waste removal with no hidden costs.
The Solution: 50mm External Wall Insulation System
To improve thermal performance and completely modernise the appearance of the property, we recommended our 50mm EPS External Wall Insulation system finished with a premium silicone render.
The completed installation completely transformed the property’s appearance while significantly improving its thermal performance. Using our premium silicone rendering system, the home now benefits from a modern, seamless finish designed to protect the building for decades.
SYSTEM BENEFITS
1
Improved energy efficiency — reduces heat loss through external walls and improves internal comfort
2
Weather resistant — provides excellent protection against wind-driven rain and harsh UK weather
3
Self-cleaning silicone finish — highly breathable with hydrophobic properties that help keep the façade cleaner for longer
4
Long-lasting colour — factory-mixed silicone render provides excellent colour stability with minimal maintenance
5
10-Year Workmanship Warranty — all External Wall Insulation systems installed by Advanced Wall Protection are completed using BBA-approved components and are backed by our 10-year workmanship warranty and the manufacturer’s product warranty
The Process, Step by Step
Every AWP project follows the same sequence, so homeowners know exactly what is happening on site and when.
STEP 01
1
Property survey and specification.
A full survey was completed to assess the property and prepare a detailed quotation.
STEP 02
2
Scaffolding installation.
Safe access scaffolding was erected around the property before work commenced.
STEP 03
3
Surface preparation.
Existing brickwork was cleaned and prepared before installing insulation boards.
STEP 04
4
50mm external wall insulation.
EPS insulation boards were mechanically fixed before applying reinforced basecoat with full mesh reinforcement.
STEP 05
5
Silicone render finish.
Primer and premium silicone render were applied to achieve a uniform finish across all elevations.
STEP 06
6
Final inspection.
Our team completed a full quality inspection before handing the property back to the homeowner.
Before and After
Original red brick replaced by a crisp, insulated silicone render finish.

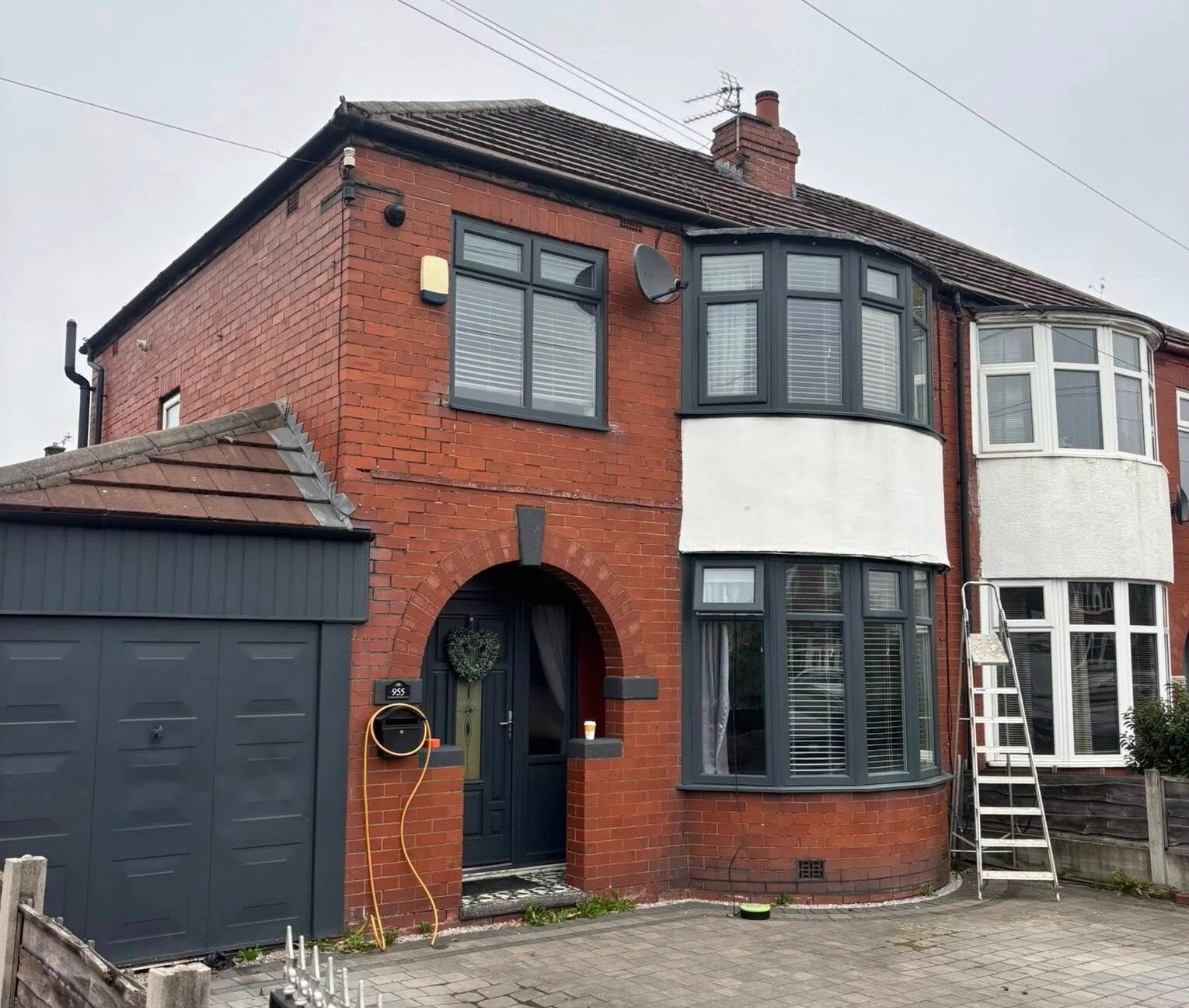

BEFORE
Original facing brickwork with poor thermal performance and a dated appearance.

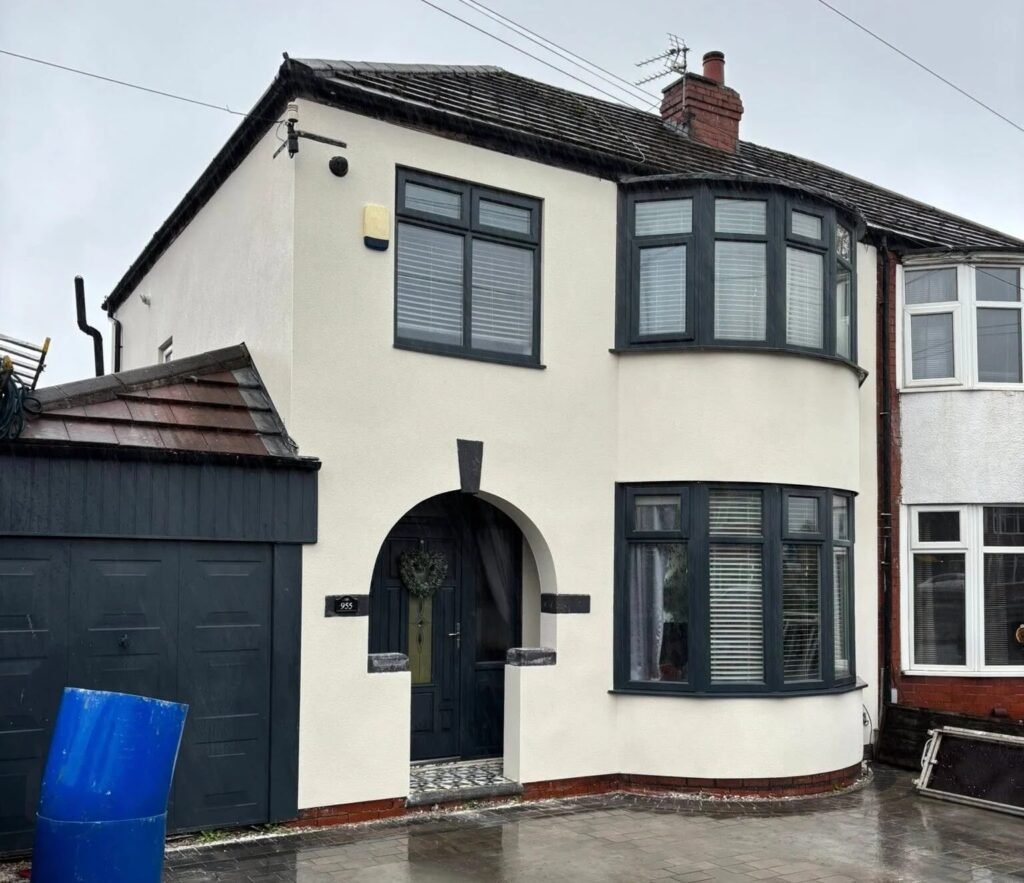

AFTER
50mm External Wall Insulation finished with premium silicone render, complementing the anthracite windows and garage door.
The Result
The finished property now has a completely new appearance while benefiting from improved insulation and long-term weather protection. The original red brick exterior has been replaced with a crisp silicone render finish that complements the anthracite windows, garage door and roofline, creating a clean contemporary look.
✓
Improved energy efficiency. Reduced heat loss through the external walls and improved internal comfort.
✓
Weather resistant. Excellent protection against wind-driven rain and harsh UK weather.
✓
A modern finish. Crisp silicone render complements the anthracite windows, garage door and roofline.
✓
Cleaner for longer. A breathable, hydrophobic silicone surface helps keep the façade clean.
✓
Reduced maintenance. Factory-mixed colour with excellent stability and minimal upkeep.
✓
Protected. Covered by our 10-year workmanship warranty and the manufacturer’s product warranty, using BBA-approved components.
